KYT-LZM-50 Chassis model Rubber Tracked Chassis
Chassis model KYT-LZM-50 Rubber Tracked Chassis Electric Rubber Track

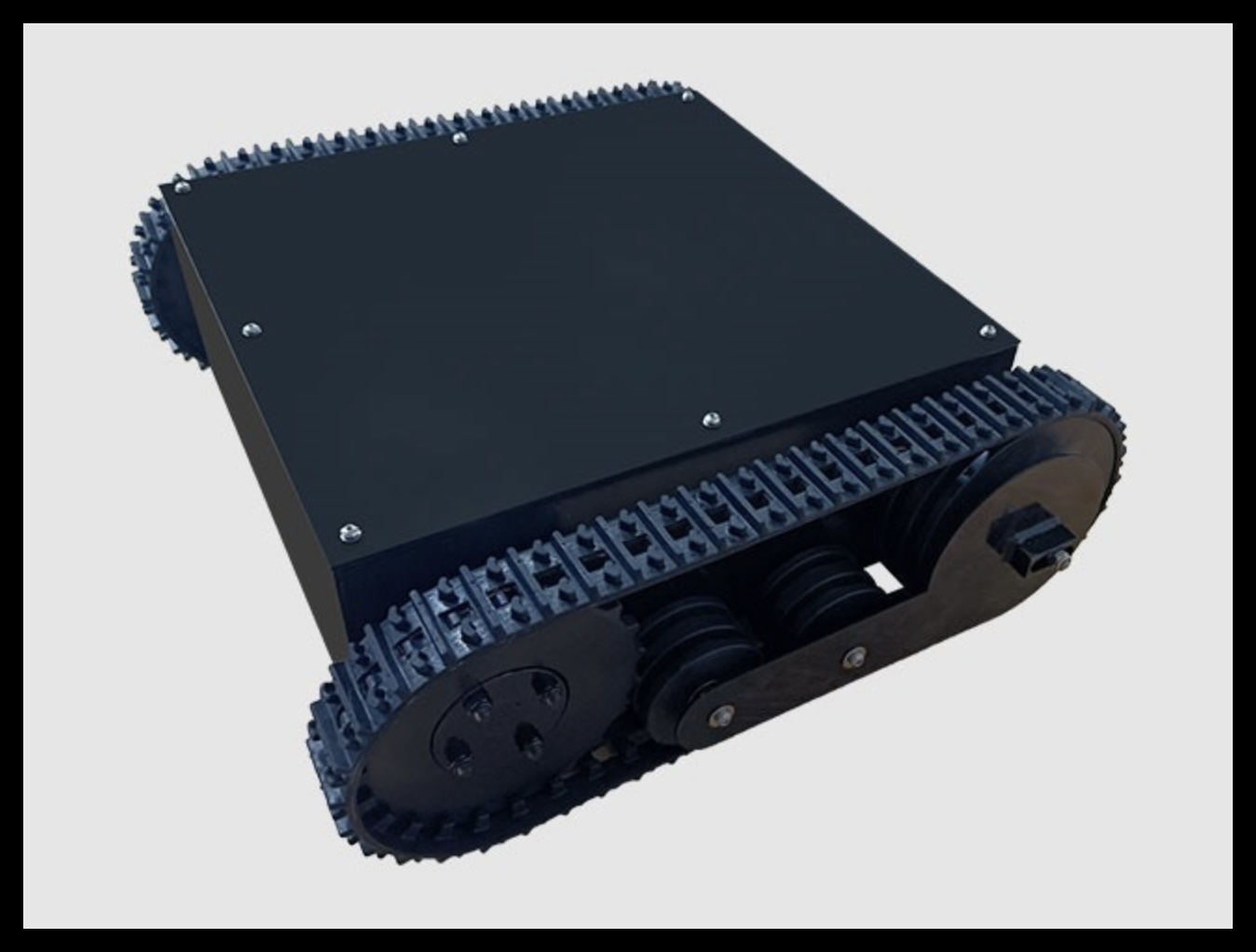

KYT-LZM-50 rubber track chassis
Chassis model: DP-LZM-50
Power type: DC brushless motor
Chassis length: 556mm
Voltage: 48V
The chassis width is 540mm
Motor power: 200W
Chassis height: 207.5mm
Reducer type: Worm gear reducer
Track model: 50-56 sections
Speed: 0-3km/H
Height from ground: 37.5MM
Remote control type: Air controller
Chassis weight: 46kg
Remote control giant distance: Unobstructed visibility up to 800 meters
Maximum load capacity: 75kg
Two control modes: PWM
The material of the box is steel: welded plate box
Communication method: Can bus, 485.232
Gear train material: High-molecular polyethylene
Battery capacity: 48V20AH lithium battery
Shaft system material: 45 # steel
Battery life: 60 minutes
Metal material: stainless steel
Spraying method: Powder coating
Climbing ability: 30 degrees for slopes and 15 degrees for slopes
Vertical obstacle crossing height: 50mm
The KYT-LZM-50 special rubber track is made of natural rubber and Kevlar fibers, and is formed through high-temperature vulcanization and extrusion, which greatly enhances the tensile strength of the rubber track. It is a good rubber track for robots.
The rubber track chassis is 556mm in length, 540mm in width and 207.5mm in height. The wireless remote control track chassis is equipped with a 48v200W DC brushless permanent magnet motor and a worm gear reducer, which provides stronger power, more flexible turning and simple operation. The battery of the track chassis adopts a 48V20AH lithium battery, which has a longer driving range. The box body of the track chassis is welded with steel plates, and the wheel train is made of high-molecular polyethylene. The overall weight of the track chassis is light and it has strong wear resistance.
